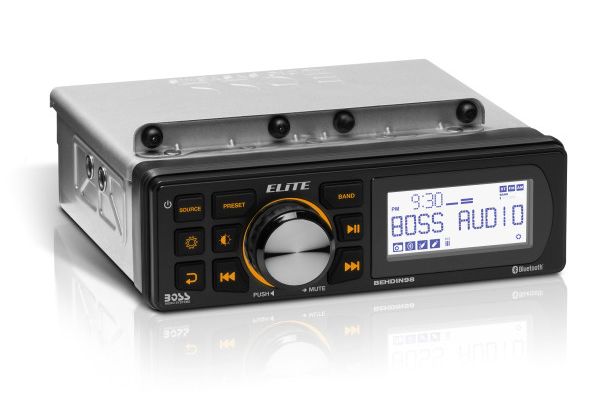

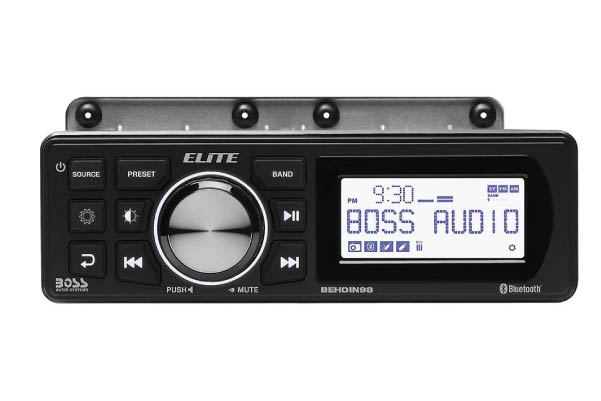

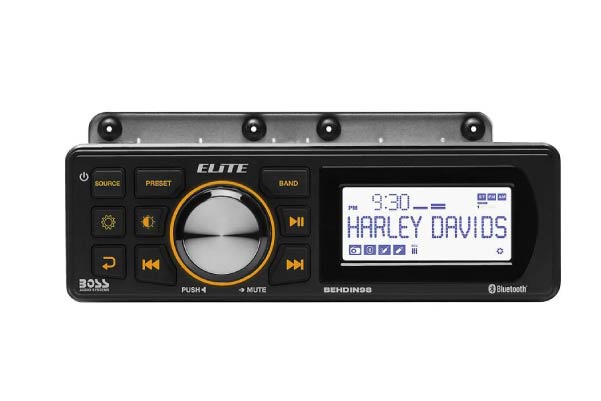

BOSS ELITE BEHDIN98
SCREEN_SIZE: 3"
Features
• Bluetooth® Audio
• 3" Monochrome LCD Display
• AM/FM Receiver with 18 FM/12 AM Presets
• Plug and Play for Easy Installation
• Switchable US & EU Tuner Frequencies
• Zero Current Draw Memory (Retains memory if power is disconnected)
• Selectable Amber or White Button Illumination
• Three Variable Brightness Display and Button Modes
• Retains Factory Handlebar Audio Controls*
• IPX6-Rated Front Panel (Weather-Resistant / Dustproof) / IPX4-Rated Chassis
• Conformal Coated PCB
• UV Protected Front Panel
• ZAM® Coated Corrosion-Resistant Steel Chassis
• Amplifier Class A/B (2 Ohm Stable)
• Max Power: 72W x 4 @ 2 Ohms / 48W x 4 @ 4 Ohms
• Operation Voltage: 9.6V – 14.4V DC
INPUTS & OUTPUTS:
• Aux In (3.5mm)
• Rear USB Port: Media & 1.5A Charging
• Front L/R Pre-Amp Outputs (2V)
• Factory OEM Rear Speaker Output, True Play and Play**
• COMPATIBILITY: Direct fit for 1998-2013 Harley-Davidson®** Electra Glide®, Street Glide® and Road Glide® Models
* Requires factory wiring harness and connectors to retain functionality.
**Not compatible with factory amplified systems, intercom, CB, rear volume controls, 1998-2005 Ultra rear speakers, and factory equipped satellite radio systems.
PLAYBACK
-MP3/WMA
-Bluetooth® Audio Streaming Stream and Control your Favorite Music APPs
