AUDISON AVCX3P
- Bi-Amplification Support: Offers the ability to connect separate amplifiers or channels for the woofer and tweeter, selectable via a high-current switch designed to handle substantial power loads, ensuring optimal performance and flexibility.
- Mid-Contour Two-Position Control: Provides fine adjustment of the mid-bass frequency response, allowing users to optimize sound output based on the woofer’s placement within the vehicle and individual listening preferences.
- Hi-Contour Two-Position Control: Enables precise selection of the tweeter’s high-pass crossover point, tailored to its position and angle relative to the listener, ensuring seamless integration and enhanced high-frequency performance.
- Customizable System Configuration: The combination of Mid-Contour and Hi-Contour controls allows for the creation of a bespoke two-way system, perfectly balancing AV 6.5 P II mid-bass, AV 3.0 II mid-range, and AV 1.1 II tweeter.
- Three-Position Tweeter Level Switch: Adjusts the tweeter’s output in 2 dB increments, allowing users to fine-tune sound balance and achieve the desired tonal precision for their listening environment.
- Hi-Boost Control: Selectable via a dedicated switch, this feature enhances high-frequency linearity above 10kHz, compensating for off-axis tweeter positioning and maintaining a smooth and natural soundstage.

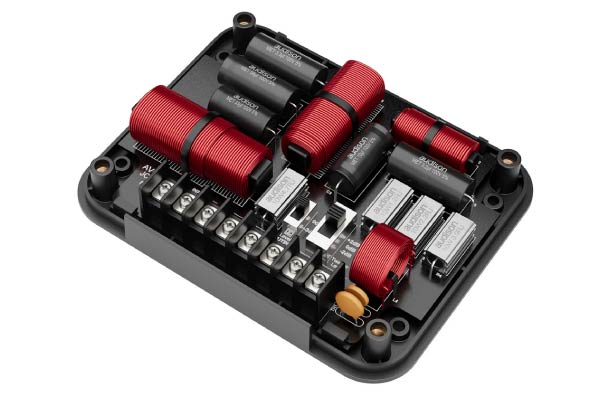

- High-Quality Capacitors: Equipped with bi-metalized 160V polyester film capacitors featuring ultra-low Dissipation Factor (DF), ensuring exceptional sound transparency and pristine mid/high-frequency reproduction.
- Air-Wound Inductors: Constructed with pure copper wire up to 1mm (about 0.04 in) in diameter, these inductors provide a high saturation threshold and minimize energy loss, delivering consistent performance in the woofer section during dynamic and high-current demands.
- Aluminium-Housed Resistors: Designed for exceptional thermal stability and acoustic performance, these resistors minimize parasitic inductance, reducing high-frequency losses and ensuring reliable operation even under demanding conditions.
