AUDISON AFM12.14bit-BUNDLE25
DSP Amplifier | 1080 W | 14 CH DSP + 12 x 90 W @ 2 ohm | D-class Fully Bridgeable + 4-gauge Power kit

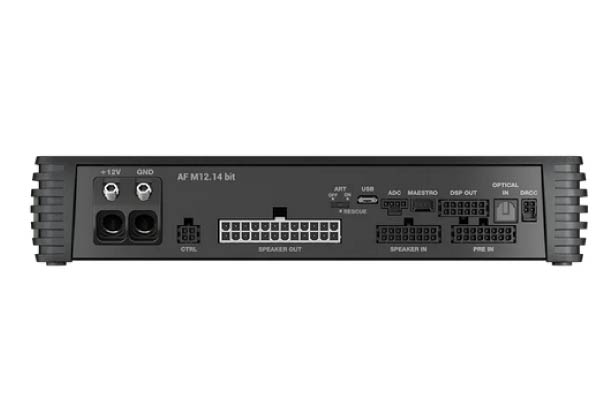

AF M12.14 bit:

• Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology
• Unbeatable power/volume ratio up to 0.68 W RMS/cm³ reaching 82% of efficiency
• Next-generation bit Drive software platform
• Hi-Res compatibility performance, with an extended audio band up to 40 kHz, made possible by and DSP working operation at 24 bit/96 kHz
• Maximum versatility thanks to the possibility of using the bridging option for each pair of power outputs
• Up to 14 output channels (12 amplified, 2 native pre-outs) controlled by the DSP to expand the system with other amplifiers
• 8 high/low-level inputs (and an optical Toslink digital input) support total connectivity even with the most complex OEM systems
• Extension card slot (additional 4 analog or 1 digital inputs)
• Electrical signal analysis for each input channel ensures proper integration and correction
• Acoustic analysis (with your USB microphone) integrates the response graph into the equalizer display. This ensures efficient tuning and great sound!
• Advanced signal routing options allow the technician to go beyond the predefined system definitions in the Configuration Wizard

FPK700.1:

• 5.2 m Translucent Red Power Flow cable
• ATO fuse holder with fuse included
• 1 m Translucent Black Power Flow Ground cable
• 5.2 m of 18 AWG Blue remote turn-on cable
• 1.5 m split loom
• All required ring and fork terminals included
• Cable ties, split loom and snap grommet included
• Ideal for systems up to 1500W RMS
